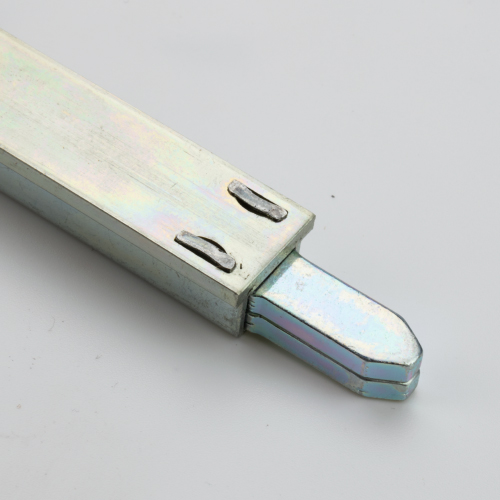

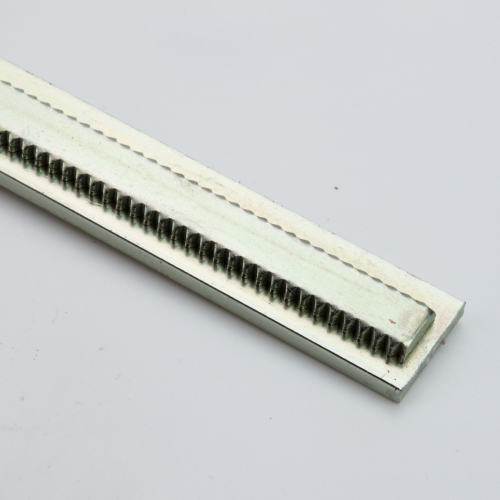

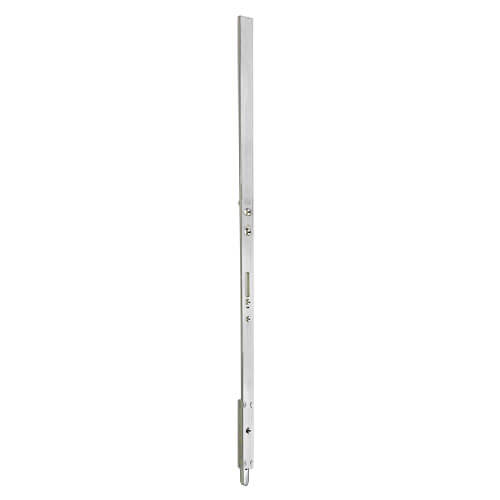

Fuhr Bottom Shootbolt – Normal Action – 570mm

Description

A Fuhr normal action bottom shootbolt for use with the Fuhr centre section multipoint locks with stock codes beginning ‘FU98Z5’ only.

The overall faceplate length is 570mm which can be cropped down to 370mm, the width is 16mm and the throw of the shootbolt is 22mm.

A shootbolt keep is not supplied and can be ordered separately, see below ordering codes for the associated keep and equivalent top section shootbolt.

• RD55185X – Shootbolt keep
• FU98ZT – Top reverse action shootbolt 685mm
