Gatemaster CDD/CDS Concealed Drop Bolt (LEAD TIME: 2-3 DAYS)

Description

This item is on a direct delivery and will be delivered separately. They may also be subjected to longer lead times and cannot be returned and/or cancelled once ordered.

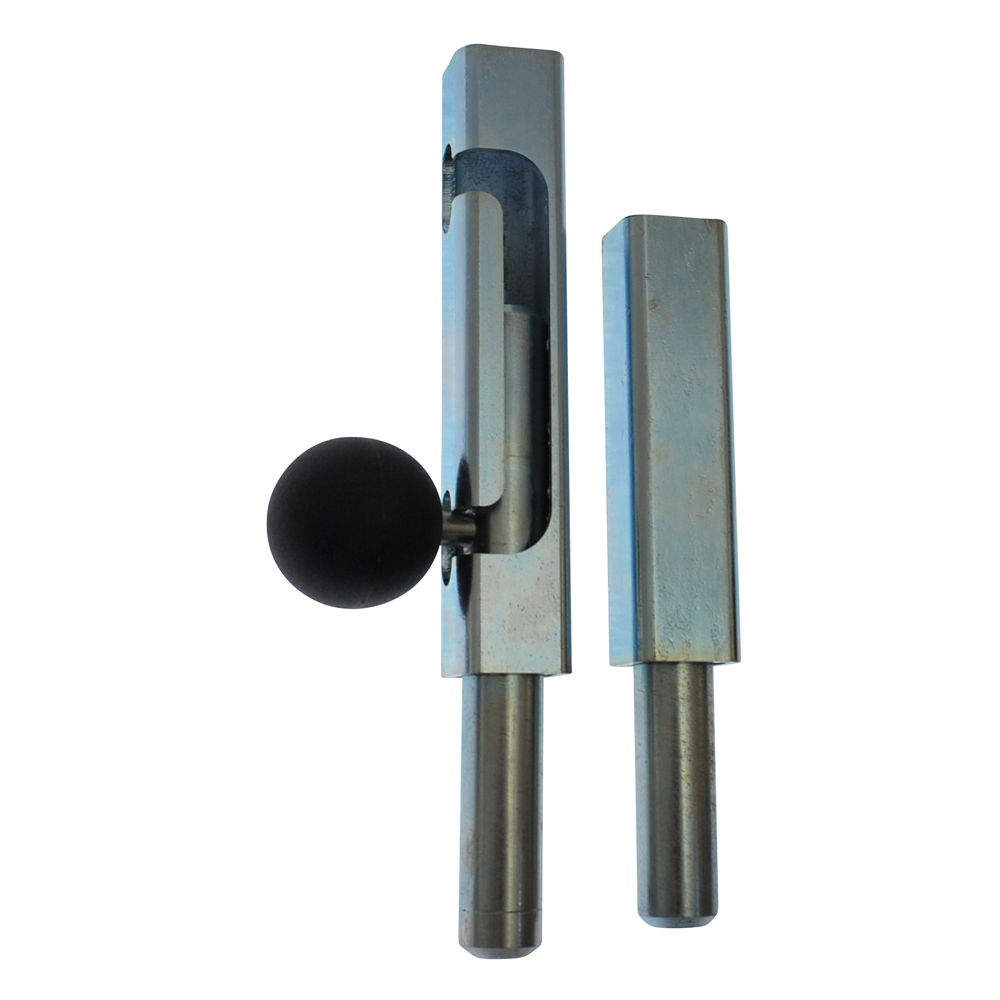

Gatemaster CDD/CDS Concealed Drop Bolt

A very neat dropbolt that can be fitted into either single or double gates. The concealed design means it suits a wide range of gate sizes and styles without looking out of place.

• Robust – The dropbolt is inside the gate frame to prevent tampering

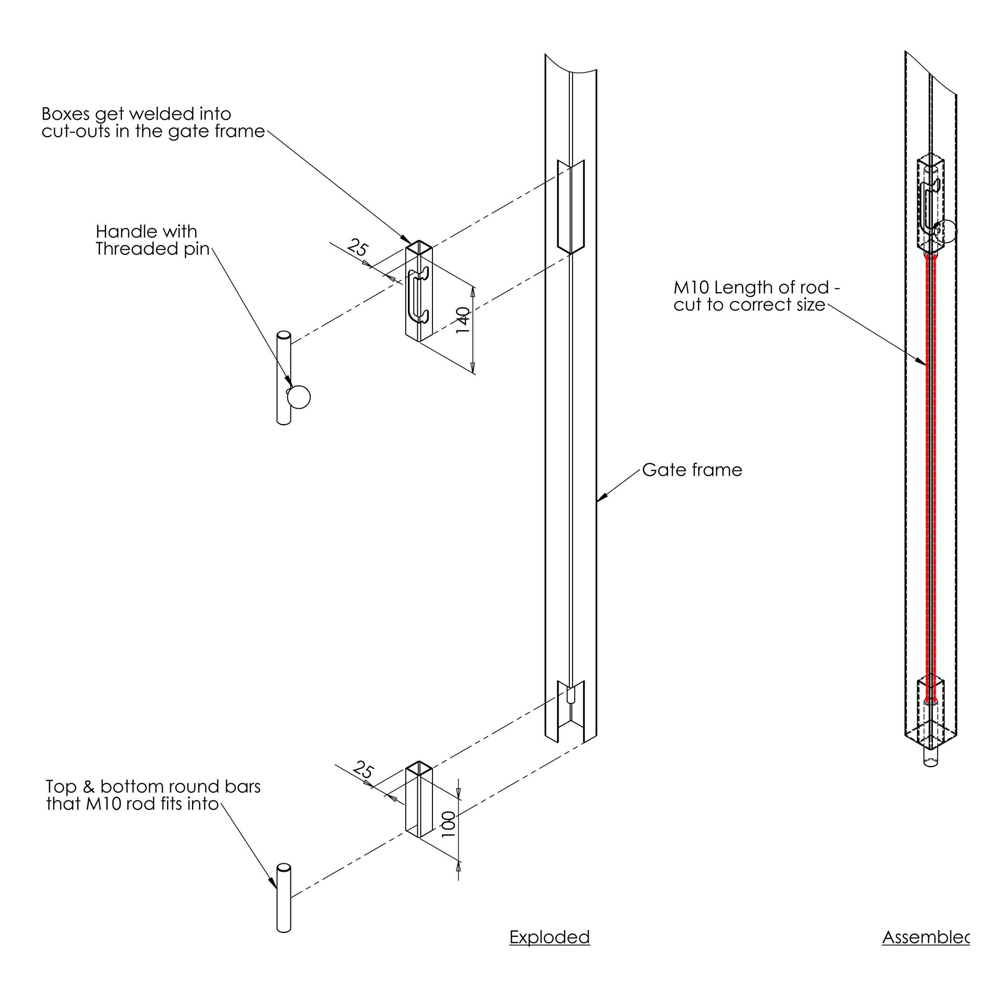

• Easy to fit – Assembled using M10 studding* which can be cut to length for use on a variety of gate sizes

• Adaptable – Fits into any box section bigger than 30mm x 30mm.

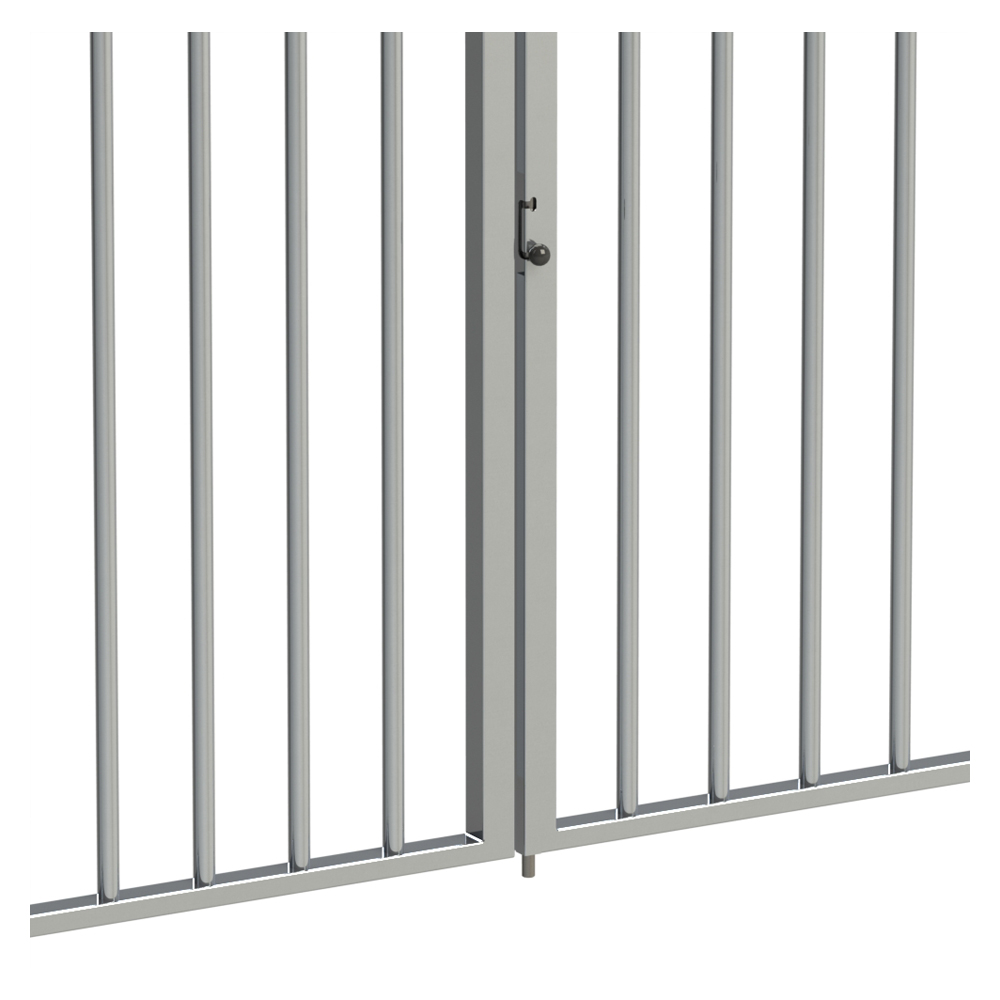

• Innovative and secure – On the double gate version, the dropbolt is lowered and rotated and locked in position. Closing the second gate prevents the Dropbolt being unlocked.

Product Code

• CDS – For single gates

• CDD – For double gates

Included in the box

• Lower bolt

• Top bolt

• Top housing

• Lower housing

• Handle

• 2 x grub screws

*M10 studding not included with the product
