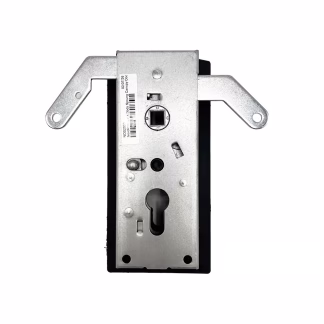

Novoferm Lock Body Sprung Canopy Doors

Description

The Novoferm Lock Body Sprung Canopy Doors is a lock body for canopy-style garage doors. It is a sprung lock body with a Silver finish. Dimensions provided include body height 157mm and body width 60mm; the backplate measures 157mm high by 85mm wide. Centring between spindle and cylinder or between fixing points is 60mm.

Key Features

• Brand: Novoferm
• Type: Lock body (sprung)
• Colour: Silver
• Body height: 157mm
• Body width: 60mm
• Backplate height: 157mm
• Backplate width: 85mm
• Centres: 60mm
• Handing: N/A

Fitment & What to Check

• Measure the existing lock cut-out and compare body height (157mm) and body width (60mm) to confirm the case will fit within the door mortice.
• Verify backplate height (157mm) and width (85mm) against the door stile and faceplate aperture to confirm clearance for screw holes and surrounding trim.
• Check the 60mm centres measurement against the spindle-to-cylinder or spindle-to-fixings measurement in the door to confirm alignment with handles or external cylinder/escutcheon.
• Confirm the door thickness and available case depth to ensure the sprung mechanism and any spindle engage correctly through the door.

Common Ordering Mistakes

• Assuming all fixings or faceplate screws are included when none are specified.
• Ordering without confirming latch/bolt throw and compatibility with existing keep or strike plate.
• Overlooking required case depth or internal clearance behind the faceplate, leading to interference with door panels or insulation.
