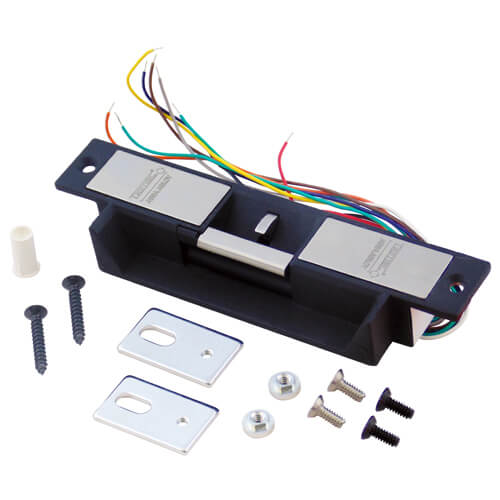

Trimec ES2000 ANSI High Security Electric Release 12v DC – Monitored

Description

The ES200 series is a high security unmonitored electric release ideally suited for high traffic areas. Available in 12v and 24v DC, these releases can be reversed from fail safe to fail secure on site.

• Type Of Release: Mortice
• Current Consumption: 175mA at 12v DC, 88mA at 24v DC
• Features: 18mm latch accomodation (incl. 3mm air gap) Non adjustable jaw, ANSI style Compatible with Aluminium frames Field reversible: fail safe/fail secure
