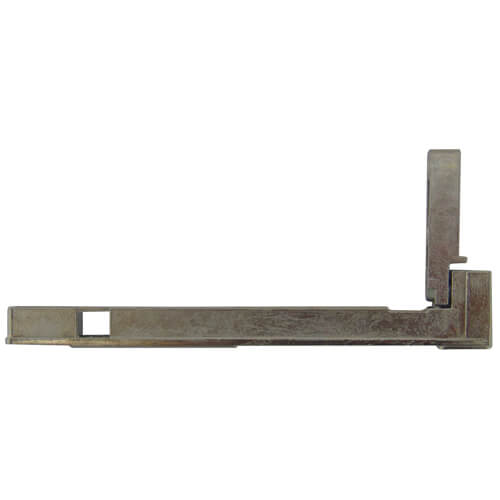

Winkhaus Autopilot TBT Bottom Concealed Pivot Hinge

Description

Winkhaus AutoPilot tilt before turn bottom pivot hinge for concealed fixed systems. Suitable for PVCu and timber, left and right hand hung doors & windows and 9mm & 13mm eurogroove axis.

This pivot hinge is not supplied with pivot rests. See below ordering options of the pivot rests.

• 1790964 – Pivot rest for 9mm eurogroove left hand hung windows
• 1790956 – Pivot rest for 9mm eurogroove right hand hung windows
• 1790905 – Pivot rest for 13mm eurogroove left hand hung windows
• 1790833 – Pivot rest for 13mm eurogroove right hand hung windows

Please note handing is established when viewing the window from inside.
