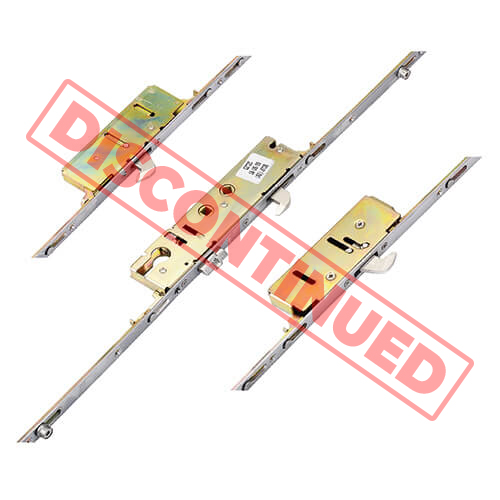

Yale G2000 Latch 3 Hooks and 2 Rollers Multipoint Door Lock – DISCONTINUED BY MANUFACTURER

Description

This part is discontinued and is no longer available.

However, part: YALECASE35 is a potential alternative. We’d recommend a gearbox swap for this product as the G2000 has a unique latch and deadbolt configuration. Swapping to a full length lock is possible with a VERSA V-MPL repair lock, which comes with replacement keeps, but some work will be required to the door.

Operation: Double Spindle

To lock the door

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the locking points.

3. Lock the system by turning the key.

To unlock the door

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.

Latch Reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

You may find this lock used as an UPVC door lock or an aluminium door lock.
